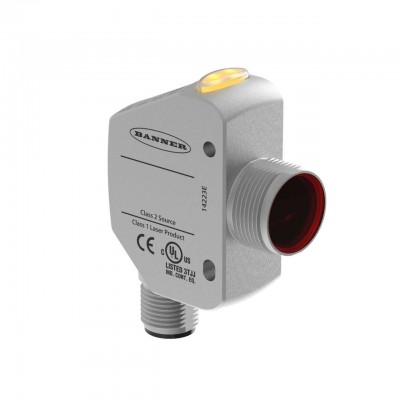

Q4X 系列：激光可调磁场
测量范围：300 毫米;输入：10-30 V 直流
输出：双极：1 NPN;1 个 PNP
5 引脚 M12 集成式 QD
零部件号： 94118
Power
DC
Sensing Beam
Visible Red Laser
IP Rating
IP67, IP68, IP69K
NEMA / UL Type Rating
NEMA 4X
Supply Voltage
10-30 V dc
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background/Foreground Suppression
Housing Style
Rectangular w/ Threaded Mount
Device Type
Sensor
Primary Housing Material
Stainless Steel
Laser Classification
Class 1
Input Output
Discrete
Connection
Integral QD
Quick Disconnect Type
M12
Max Sensing Distance (mm)
300
Minimum Sensing Distance (mm)
25
Power Supply
10-30 V dc
Adjustments
Push Button; Remote Teach
Number of Pins
5
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Max Operating Temperature (°C)
50
Min Operating Temperature (°C)
-10
Minimum Response Time (ms)
1.5
Barrel Thread
M18
Laser Control
Yes
Max Ambient Light (Lux)
5000
Feature: Remote Teach
Yes
Feature: Washdown Rated
Yes
Feature: Clear Object Detection
Yes
Feature: Timing (Hold/Delay)
Yes
Feature: Ecolab Certified
Yes
Feature: Chemical Resistant
Yes
Feature: Quick Disconnect
Yes
EPLAN Status
Published
EPLAN Original Sent Date
12/08/2021
